To connect an HD Box to Your TV with Component Cables, follow these steps:

Connect one end of the coaxial (RF) cable to the cable or satellite jack on your wall.

Connect the other end of the coaxial (RF) cable to the CABLE IN or SATELLITE IN on your HD box.

Connect one end of the Component video (green, blue and red) and audio (red and white) cables to the Component video and audio OUT on you HD box.

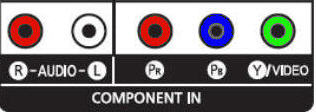

Connect the other end of the Component video and audio cables to the Component video and audio IN on the TV.

Note: Match the color of the Component cables to the colors on the Component input.



Press SOURCE button on the TV's remote control one or more times until you have selected the COMPONENT input.

Note: If you are still having problems getting your equipment to work properly, go to our advanced connection guide by click on the icon below.
