Question:

How do I connect my Blu-ray player to my TV using component cables?

Answer:

To connect your Blu-ray player to your TV using component cables, follow these steps:

1. Connect one end of the component video (red, blue, and green) and audio (red and white) cables to the component and audio OUT on your Blu-ray Player.

Note: Match the color coded plugs on the cables to the color coded jacks on your Blu-ray Player and TV.

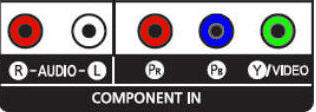

2. Connect the other end of the component video (red, blue, and green) and audio (red and white) cables to the component and audio IN on the TV as illustrated below.

3. Turn the TV on, and then press SOURCE on the remote one or more times until you have selected the Component input.

Note: If you are still having problems getting you equipment to work properly, go to our advanced connection guide by clicking on the icon below.
