Question:
How
to connect a 3D Blu-ray player, 3D TV, and 7.1 Audio Receiver without an HDMI
port on the audio receiver?
Answer
:
You
will need:
- 3D
Blu-ray, 3D TV, and 7.1
Audio Receiver
- 8
Multi-Channel analog audio cables
- High
Speed HDMI Cable

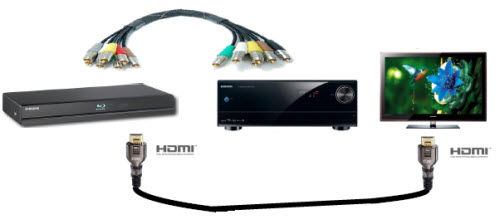

If
your Audio receiver does not have an HDMI port you can still use a set of Multi-channel
analog audio cables to obtain high resolution surround sound from your Blu-ray
player.
To
connect your Blu-ray player to your 7.1 Audio Receiver follow the steps below.

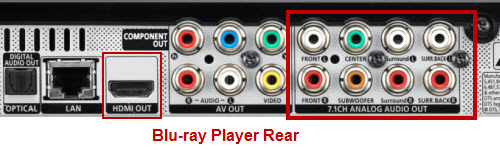

- Using
the 7.1 Multi-Channel audio cables, connect the 7.1CH Analog Audio OUT ports
on the rear of the player to the 7.1CH Analog Audio IN ports on your audio
receiver.
- Using
a High Speed HDMI cable connect the HDMI OUT port on the rear of the player
to the HDMI IN port on your 3D TV.
- Turn
on your 3D Blu-ray player, 3D TV and Audio Receiver.
- Press
the input select button on the Audio Receiver remote to select the external
input and hear sound from the player. If you’re not sure on how
to change your Audio Receiver’s input refer to the accompanying literature
that came with your Audio Receiver.
- Press
the input select button on the 3D TV remote to select the external HDMI
input and see video from your player. If using a Samsung 3D TV and Anynet
is on, you do not need to change the inputs, it will be done automatically
when the player is on.
Notes:
- When
you connect to a 5.1 channel home theater or receiver, connect all the Analog
audio output jacks from the player except for the surround back left/surround
back right outputs.
- When
you connect the 7.1CH analog audio out terminals using 7.1CH audio cables,
we recommend you set the Digital Output to PCM.
- The
front left and right outputs on your player and 7.1 channel Audio Receiver
must be connected to hear menu audio from certain Blu-ray discs, depending
on disc.
- If
your TV is not compatible with compressed multi-channel formats (Dolby Digital,
DTS), the player may output PCM 2ch downmixed audio even though you set Bitstream (either Re-encode or Audiophile) on your setup menu.
- If
you play MPEG audio soundtracks, the audio signals outputs as PCM regardless
of Digital Output selections (PCM or Bitstream)
|
