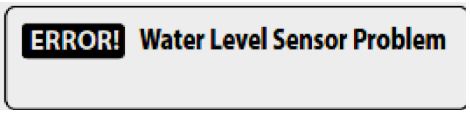

| 1C, 1 1C, 1E, LE1 (Water Level Sensor Error) | |
|
Question: What does the (1C, 1 1C, 1E, LE1) error code mean on my washing machine?
Answer: This means that the water level sensor is malfunctioning or there might be an issue with the wire connections on either the water level sensor terminal or the printed circuit board (PCB) terminal. When this error occurs, the drain pump will turn ON automatically and remain ON, to evacuate maximum water to prevent a flood, regardless of the machine's operating condition. 1 1C is for Flex Models. 1 1C has the same meaning, except, it's for the upper washer of Flex models. For example: WV60M9900*
Terms: Error Code - A code that appears when there is a problem with the appliance. Water Level Sensor - A device that detects the water level in the washing machine. Malfunctioning - Not working properly. Wire Connections - The electrical wires that connect different components of the appliance. Printed Circuit Board (PCB) Terminal - The part of the PCB that connects to other components through wires. Drain Pump - A component responsible for removing water from the washing machine. Operating Condition - The current state or mode of the machine (e.g., spinning, washing, or draining). |
|
|
|
|
|
|||||
|
|||||
 |
|||||
