Composite AV

Question:

How to connect a DVD player to your TV using Composite A/V cables?

Answer:

To connect a DVD player to your TV with Composite A/V cables, follow these steps:

  1. Connect the composite video (yellow) cable from Composite video out on your player to the green video input with the yellow ring around it on your TV. Connect the audio (red and white) cables from the Composite audio OUT on your player to the audio AV IN jacks on your TV. See the illustration below.

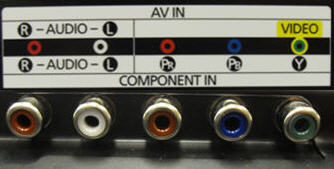

    2. Note: The AV Video In on your TV shares a connection with the Component input. The green input labeled Y also has a yellow ring around it, identifying it as the Composite Video In connection. The Connection jacks will be facing down on your TV

  1. Press the SOURCE button on the TV's remote until you are on AV.
