Connect An HD Box To Your TV With Component AV Cables
Cyber

Question:



How to connect my HD Box to my TV using Component AV cables?



Answer:

To connect your HD Box to your TV using Component AV cables, follow these steps:

  1. Connect one end of the Component AV cables to the Component video and audio OUT on you HD box. (Use green, blue, and red for video and the other red and white connections for audio left and right)
  2. Connect the other end of the Component AV cables to the Component video and audio IN on the TV.

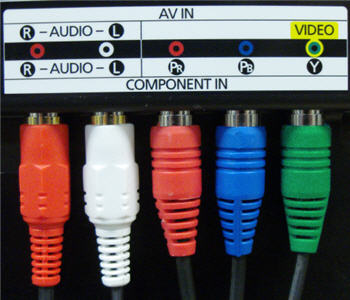

    3. Important: Match the color of the Component cables to the colors on the Component input, being careful not to mix the 2 red connections.

  1. Press SOURCE button on the TV's remote control one or more times until you have selected the COMPONENT input.

    2. Note: If you are still having problems getting your equipment to work properly, click here to go to our advanced connection guide Wire Wizard.




Please contact our technical support team so that we can further troubleshoot your product over the phone and determine if service is needed. Click the phone support button below to receive a transaction number which will provide the technical support agent with the details of this session.
