Connect An SD Box To Your TV With A Composite AV Cable
Cyber

Question:



How to connect my SD box to my TV using composite AV cable?



Answer:

To connect your SD box to your TV using composite AV cable, follow these steps:

  1. Connect one end of the composite AV cables to the video and audio OUT on you SD box. (Use yellow for video and red and white for audio left and right)

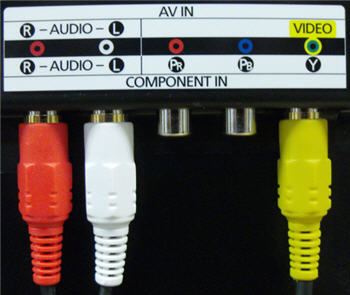

  2. Connect the other end of the composite AV cables to the video and audio AV IN on the TV (as illustrated below).

  1. Turn the TV on, and then press [SOURCE] button on the remote one or more times until you have selected the AV input.

    2. Note: If you are still having problems getting your equipment to work properly, click here to go to our advanced connection guide Wire Wizard.




Please contact our technical support team so that we can further troubleshoot your product over the phone and determine if service is needed. Click the phone support button below to receive a transaction number which will provide the technical support agent with the details of this session.
