Connect An HD Box To Your TV With A DVI-to-HDMI Cable
Cyber

Question:



How to connect my HD Box to my TV using a DVI-to-HDMI cable and audio cables?



Answer:

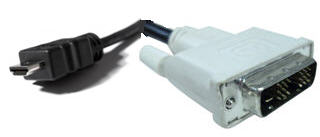

To connect your HD Box to your TV using 1 DVI-to-HDMI cable, and audio cables follow the steps below:

  1. Connect the DVI end of the DVI-to-HDMI cable to the DVI OUT on your HD box.
  2. Connect the HDMI end of the DVI-to-HDMI cable to the DVI 1 in on the TV.

  1. Connect the RCA Stereo (red and white) end of the audio cable to the DVI audio OUT on your HD box.
  2. Connect the mini stereo plug (3.5mm) end of the audio cable to the PC/DVI Audio IN on the TV.
  3. Press the SOURCE button on the TVs remote one or more times until you select the HDMI1/DVI input.

    Note: If you are still having problems getting your equipment to work properly, click here to go to our advanced connection guide Wire Wizard.




Please contact our technical support team so that we can further troubleshoot your product over the phone and determine if service is needed. Click the phone support button below to receive a transaction number which will provide the technical support agent with the details of this session.
