Question:

How to connect my HD box, recording device, and TV using HDMI cables?

Answer:

To connect your HD box, recording device, and TV with an HDMI cable, follow these steps:

1. Connect one end of a coaxial (RF) cable to the wall and the other end to the CABLE IN or SATELLITE IN on your HD Box.
2. Connect a set of composite video (yellow) and audio (red and white) cables from the video and audio AV OUT on the HD Box to the video and audio AV IN on your Recording Device.

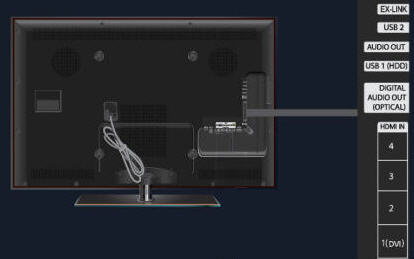

3. Connect a HDMI cable from the HDMI out on the Recording Device to the HDMI in on the TV (see illustration below).


Note: Because you will be using 2 HDMI connections we recomend you label the inputs on your TV so you do not confuse the two inputs.

4. Connect the HDMI cable from the HDMI OUT on the HD Box to the any of the HDMI inputs on the TV.

5. Use the remote of the recording device to switch the recording device's input to the AV input to which you've connected your HD box.
6. Press the SOURCE button on the TV's remote to switch between:
• The Recording Device (HDMI selected in step 3).
• The HD Box (HDMI selected in step 4).

Note: We recomend labeling your inputs to avoid confusing the HDMI inputs.
