Question:

How to connect a recorder to my TV using a DVI-to-HDMI cable?

Answer:

To connect a recorder to your TV using a DVI-to-HDMI cable, follow these steps:

1. Connect  the coaxial cable from the antenna or cable jack on your wall to the RF IN on your recorder.
2. Optional: Connect the second length of coaxial cable from the RF OUT of the recorder to the ANT IN (Coax) on the rear of your television.

Note: Completing this step allows you to turn the recorder off and still watch TV. To watch TV when the recorder is off, press [Source] on the TV remote to switch to the TV input.

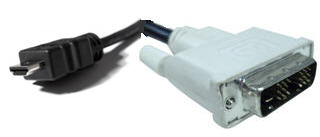

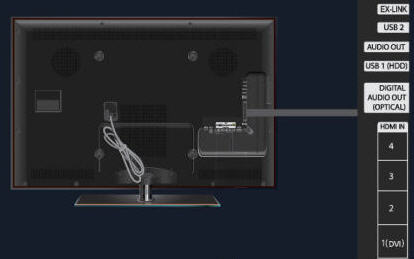

3. Connect the DVI end of the DVI-to-HDMI cable to the DVI OUT on your recorder and the HDMI end of the DVI-to-HDMI cable to the HDMI 1 in on the TV.


4. Connect the audio (red and white) cables from the DVI audio OUT on the recorder to the DVI audio IN on the TV.

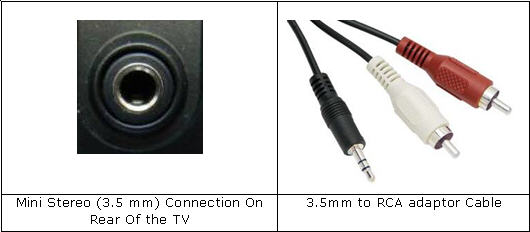

Note: The DVI audio input is a Mini Stereo Plug (3.5mm). You will need to have a Mini plug to RCA converter or cable.

5. Press the SOURCE button on the TV's remote to switch to the HDMI 1/DVI input.

Note: If you are still having problems getting your equipment to work properly, go to our advanced connection guide by clicking here.

If You Still Need Help

If you are still having a problem after following the steps above, please contact us for further support. When an agent is available, you can click the �Live Help � Start Chat� button below and begin chatting with a live technical support agent. You can also click the �Phone Support� button, fill out a service request with the details of this session, and then call in and speak to a technical support agent.
