DVI To HDMI

Question:



How to connect my laptop to a TV using HDMI-to-DVI connection?



Answer:

If you are using an HDMI-to-DVI connection, follow these steps:

  1. Make sure your TV and computer are off.
  2. Connect the DVI-D Out jack on your laptop's video card to the HDMI/DVI 1 input jack on your TV using a DVI-to-HDMI cable.
  3. Using an audio cable with a mini-stereo plug on both ends connect from your laptop's audio out to the HDMI/DVI AUDIO IN jack on your TV.

    Note: If you are using the laptops speakers or have your laptop connected to separate speakers, you can skip this step.

  1. Turn on your laptop.
  2. Turn on your TV.
  3. Press the SOURCE button on your remote or on the front panel of your TV to select the HDMI 1 input.

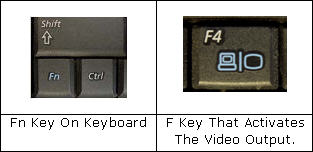

  4. Press and hold the FN key (usually located in the lower left side of the laptops keyboard) and, depending on your laptop, the F5, F7, F8, or F9

    Note: There are three different screen modes that your laptop can be set to for use with your TV:

    • Mirrored: This mode can also be called cloned. In this mode the laptop screen and your television screen display the same image. One drawback with this mode is the resolution being used but be supported by both screens.
    • External: This mode may also be called presentation mode. In this mode the laptop screen is disabled and only your television will display a picture.
    • Extended Desktop: This mode can also be called Dual View. In this mode your desktop is extended across both screens. A benefit to this mode it that you can run different resolutions on your different screen.
  1. Adjust the display if necessary using the Windows Display dialog which can be accessed through the Control Panel.
