How To Connect
A Video Game System
Answer:
This
section explains how to connect video game systems to your television.
Most
video game systems come with the cables required for connecting them to
your TV.
Note:
Many game systems also have their own proprietary connections on one
end of these cables.
If your video game system has a proprietary connection then
you must use the cables that came with the system or compatible
cables for your system.
The
instructions
in this section are arranged by the type of connection available on your TV.
Composite AV
To connect a video
game system to your TV with Composite A/V
cables, follow these steps:
- Connect one end of the Composite video (yellow) and audio (red and white) cables to
the video game system. This will usually be the proprietary connection end
that connects to your game system.
Note:
The end that connects to your game system is usually the proprietary end.
- Connect
the composite video (yellow) cable to the green video input with the yellow
ring around it on your TV. Connect the audio (red and white) cables to the
audio AV IN jacks on your TV. See the illustration below.

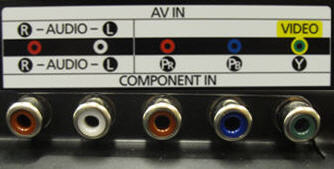

Note: The AV Video In on your TV
shares a connection with the Component input. The green input labeled Y also
has a yellow ring around it, identifying it as the Composite Video In
connection. The
connection jacks on the TV will be facing down.
- Press the
SOURCE button on the TV's remote until you are on AV.
Component AV
To connect a video
game system to your TV with Component
A/V cables, follow these steps below:
- Connect one end of the Component video (green, blue, and red) and audio (red and white) cables to
the COMPONENT
OUT on your video game system. This is usually be the end with the
proprietary connection that connects to the video game system
- Connect the other end of the Component video (green, blue, and red)
and audio (red and white) cables to the COMPONENT IN on the TV. See the
illustration below.
Note:
The connection jacks on the TV will be facing down.
- Press the
SOURCE button on the TV's remote and
select the COMPONENT source.
HDMI
To connect a video
game system to your TV
with an HDMI cable, follow these steps:

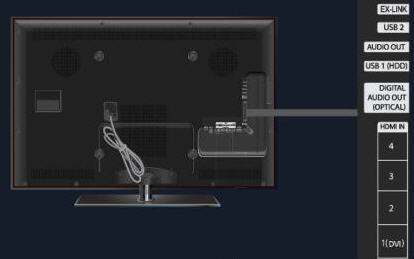

- Connect the HDMI cable from
the HDMI OUT jack on your video game system to any free HDMI input
on your TV.
- Press the
SOURCE button on the TV remote until you are on the
choosen HDMI connection you chose in Step 1.
VGA
To connect a video
game system to your TV with a VGA cable, follow these steps:
- Connect the VGA cable from
the VGA OUT on the player to the PC IN on the TV. The end of the cable that
connects to the video game sysem is usually be a proprietary connection.
- Connect the audio (3.5mm mini-jack) cable from the VGA AUDIO
OUT on
the video game system to the PC AUDIO IN on the TV.
Note:
If your player has red and white audio jacks for the VGA output, then
you need an
RCA-to-mini-jack adapter to make the audio connection. RCA-to-mini-jack adapters are available at most electronics stores.
- Press the
SOURCE button on the TV's remote until you are on PC.
|
