Set-Top Box
Requirements
- Set
Top Box setup and connected to TV.
- Cable/Satellite
provider information.
- Model
number of external device.
- To
start setup of the Universal Remote press the SOURCE
button.
- Use
the navigational pad to select Universal Remote Setup in the top right of
the source menu.

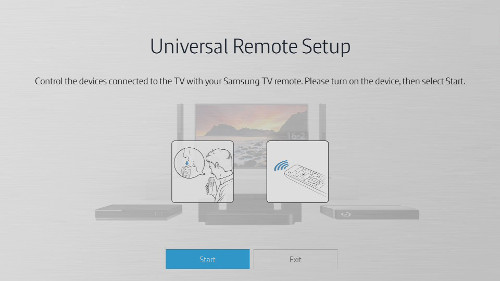

- The
On-screen setup will appear. Start will be highlighted, click Start to begin the
the setup.

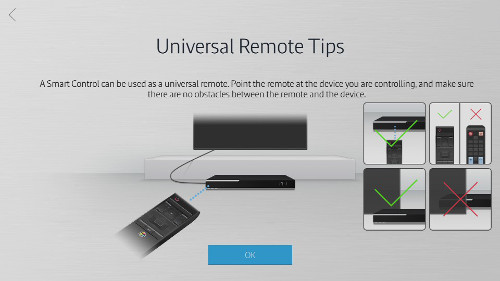

- Confirm
that there is nothing blocking the Set Top Box's IR reciever. Select
Ok.

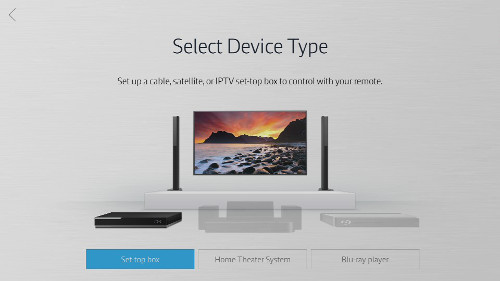

- Use
the navigation pad to select the Set-top box.

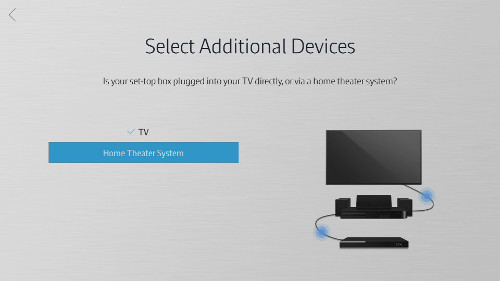

- A
screen displays asking how you have the STB connected.
- Select TV
if the STB is connected directly to the TV.
- Select Home Theater System
if the STB is connected through a Home Theater System.

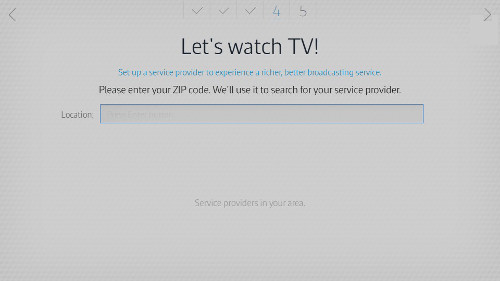

- Enter your zip code.

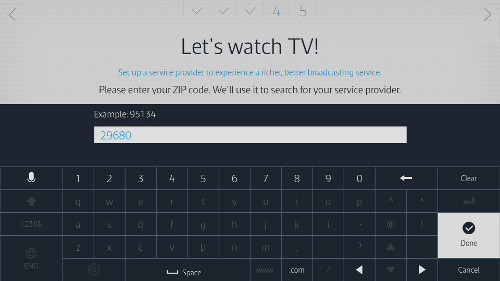

- Click
in the text box to open the on-screen virtual keyboard. Enter your Postal code,
and then select Done
and click to continue.

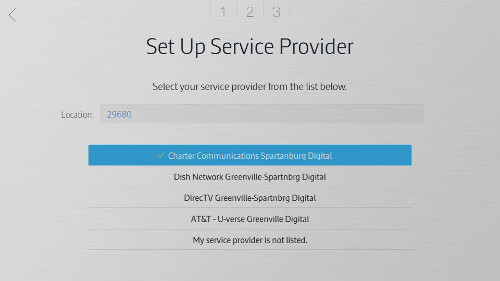

- The
providers that are available in your area will be displayed. Use the touchpad
to select your provider, and then click to continue.
Note:
Providers are based on the zip code entered, if your provider is not listed
select My provider is not listed.
- Select
the input your STB is connected to. Samsung recommends using HDMI 1.
Note:
The coax source is not available to be selected as a source for STB.
- Test
the codes available for your Set-Top Box. Test the channel buttons up and
down on your Samsung remote.
- If
the channel changes select Yes
and continue to Step 12 in this guide.
- If
the channel does not change select No
to test the next code.

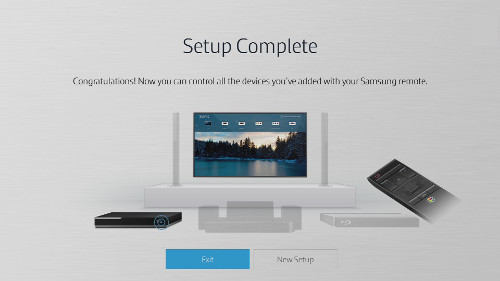

- Your
setup is now complete. You will have a few options to finish your setup.
- Exit:
Exits the Universal Remote Setup.
- New
Setup: Begins from the beginning to add another device to the universal
control.
|
