PROBLEM 1:

Reverse The Dryer Door

SOLUTION 1:

To reverse the dryer door, please perform the following steps:

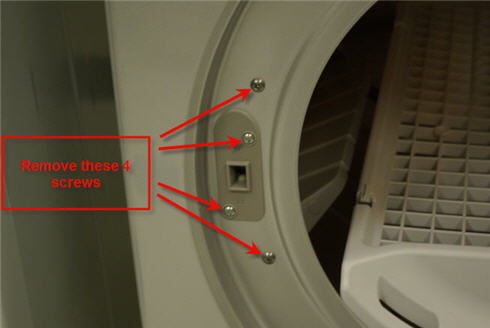

1. Open the dryer door and remove the 4 screws on the front of the door frame (illustrated below).

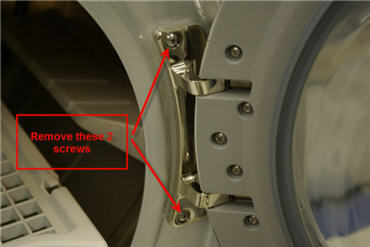

2. Remove the 2 screws on the door hinge as illustrated below.

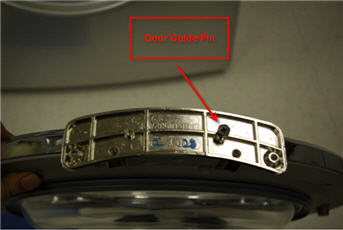

3. Remove the door by sliding the hinge/door assembly up to disengage the door guide pin from the door guide slot.

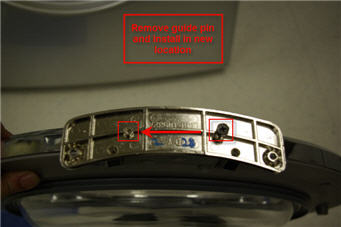

4. Unscrew the Guide Pin on the door hinge and install in new location as per the illustration below.

• When installing the guide pin in the new location, DO NOT over-tighten the guide pin. Guide pin should be SNUG.

5. Install the door by reversing the removal procedure.
