Question:

How can users enable HDR in Windows 10 when connected to an UHD television at 4K@60Hz?

Answer:

To enable HDR in Windows 10 on a 4K@60Hz UHD television, follow these steps:

Symtoms:

It is impossible for users to enable HDR if the resolution is 4K@60Hz.

PC 4K@60Hz > Try to turn on the HDR > Fail to turn on

Reproduce root

1. On TV in SETTINGS -> GENERAL -> EXTERNAL DEVICE MANAGER -> INPUT SIGNAL PLUS -> (select the HDMI with your PC) -> ENABLE

2. On your PC set the resolution to 3840 x 2160 @ 60Hz

3. On your PC right click on the desktop and select "DISPLAY SETTINGS" -> enable "HDR and WCG"

The option will disable by itself and The video signal remains SDR (HDR fails)

Customers are currently aware of only one solution which is using the mode 4K@30Hz.

Cause:

Unknown

Solution:

In order to enable the HDR with 4K@60Hz(nVidia), please follow the below steps

1. On TV in SETTINGS -> GENERAL -> EXTERNAL DEVICE MANAGER -> INPUT SIGNAL PLUS -> (select the HDMI with your PC) -> ENABLE

2. On your PC open NVIDIA CONTROL PANEL -> CHANGE RESOLUTION -> CUSTOMIZE ->  define your custom requested resolution using the data of E-MANUAL Read Before Connecting a Computer (Supported Resolutions)

E.g. For 3840 x 2160 @ 60Hz the CREATE CUSTOM RESOLUTION screen has to be set like this on NIKE-M:

Horizontal pixels: 3840

Vertical lines: 2160

Refresh rate (Hz): 60

Color depth (bpp): 32

Scan type: Progressive

Standard: Select first AUTOMATIC and then change to MANUAL; afterwards

Make sure that Refresh Rate under "Horizontal" matches the frequency listed in E-MANUAL

Make sure that Pixel clock matches the frequency listed in E-MANUAL

Make sure that Polarity matches the polarity listed in E-MANUAL

3. Click on the TEST button

If The resolution works well then agree with saving The resolution and use it from now on

I recommend to set the OUTPUT DYNAMIC RANGE to LIMITED

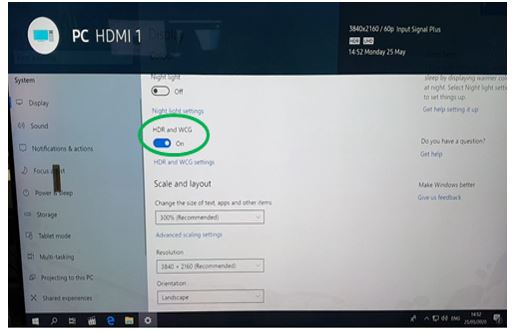

4. On your PC right click on the desktop and select DISPLAY SETTINGS-> enable HDR and WCG
